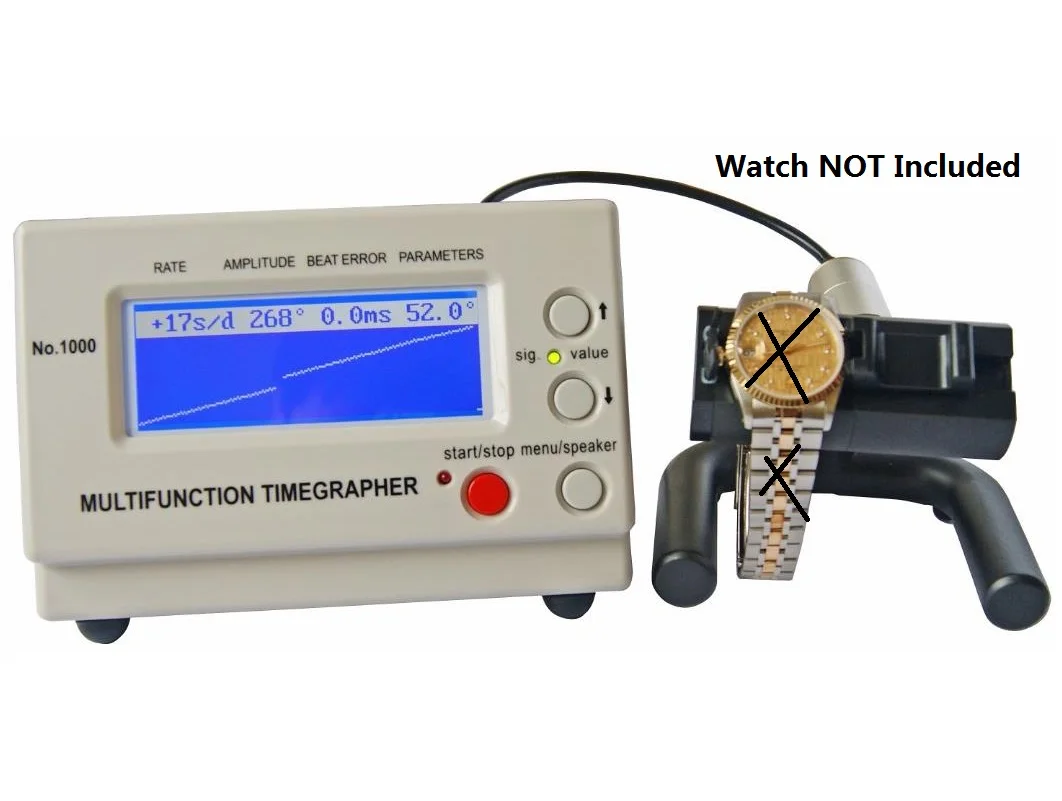

110V-220V Updated No.1000 Watch Timing Tester Timegrapher for Watchmakers

110V-220V Updated No.1000 Watch Timing Tester Timegrapher for Watchmakers

This program is the newest version, Not the old generations years ago.

A Must Have instrument for serious watch makers, repairers and collectors

1. This timegrapher is for Mechanical watch tester

2.Used to test Rate deviation,Amplitude,Beat Error

Rate - How fast/slow the watch runs in seconds per day

Amplitude - the amount of rotation in the swing of the balance wheel

Beat Error - how equal each swing of the balance wheel oscillation is

Specifications:

- Measuring possibilities: Rate deviation, amplitude, beat error of mechanical watches and diagram recording of the beat noise.

- Frequency numbers: It can selected out the common beat number automaticly, also can selected out the less common beat number by manual.

- Rate deviation measurement: the range of deviation is ± 999 sec / day, precision 1.0 sec/day.

- Amplitude measurement: Numerical display in degrees, resolution is 1°,measuring range: 100°to 360° (the lift angle can affect the amplitude, range: 30°to 70°.Under normal circumstances, the amplitude value do not exceed 360°.)

- Measuring period times for the average numerical results: 2s, 4s, 8s, 10s, 20s, 30s, 30s, 60s.

- Measuring of the Beat error(Frequency error): Numerical display in milliseconds. Resolution is 0.1 milliseconds; the measuring range is 0-9.9 ms.

- Lift Angle: the measuring range is 30 ° to 70 °, the factory set it to 52 °.

- Supply voltage: single-phase AC 100 V~240V ± 10% two-line.

- Measure positions: 1 to 6 positions.

- Dimensions: 173×9.5×11.5mm

- Gross Weight: appr.:2.0kg

Package included:
1* watch timegrapher No.1000(watch not included)
