Coaxial Touch Key Watch Timegrapher NO.8200 Precise Rate Amplitude Beat Tester for Watchmakers

Coaxial Touch Key Watch Timegrapher NO.8200 Watch Rate Amplitude Beat Tester for Watchmakers

his tester has adopted the updated technology to ensure its testing accuracy. it is a good instrument for watch factory, watch repair service!

Features:

1. No.8200 timegrapher is precise for watch multi-testing by watch manufacturers and watch technician.

2. LCD screen display watch frequency diagram;

3. Can automatically adjust optimal signal level testing during testing according to different watches;

4. Automatically responds to conventional beat and manually select for the special beat;

5. 2 s, 4 s, 8 s, 12 s, 20 s, 30 s, 60 s of sampling period optional;

6. The average of corresponding period will be regard as the precise value of the watch;

7. 6 kinds of testing position can be adjusted, and the simulation sound can be play in the speaker or mute;

8. Can automatically calculate in real time for the following: beat rate; amplitude; beat error; beat number.

Specifications

Measuring Possibilities: Rate deviation, amplitude, beat error

Rate Deviation Measurement: Range: ± 999 sec /day; Precision: 1.0 sec/day

Amplitude Measurement: Numerical Display in degrees; Range: 100° to 360°; Resolution: 1°

Measuring Beat Error (Frequency Error): Numerical display in milliseconds; Range: 0 - 9.9 ms; Resolution: 0.1 ms

Test Position: 1 to 6 positions

Language: English

Supply Voltage: AC 100 V~240 V

Automatic common beat number: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

Manual beat number: 3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500,

14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280,

17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

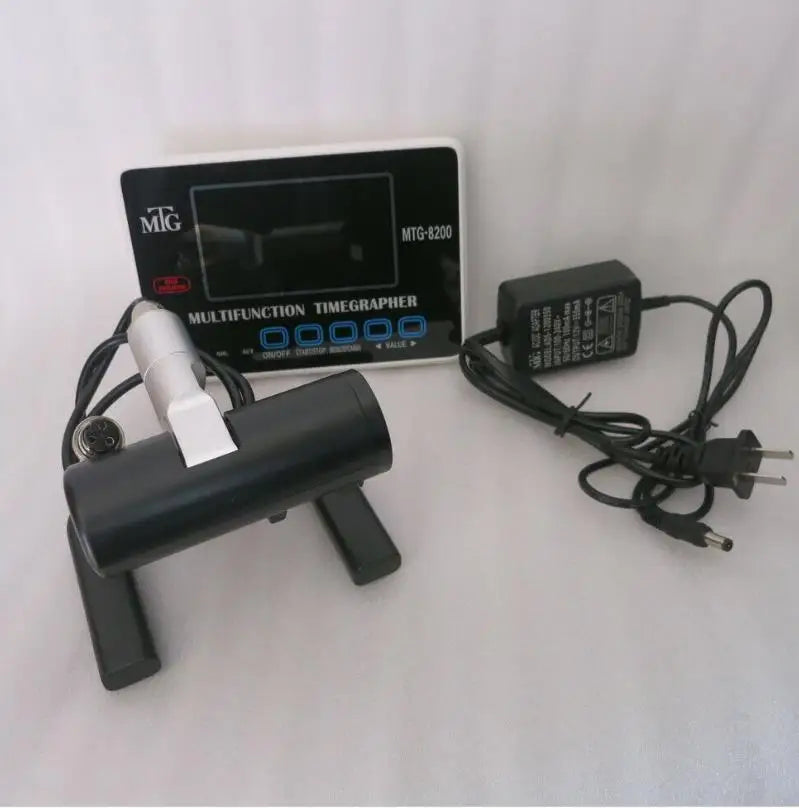

Package includes:

1* watch timegrapher

1*microphone

1* ac adapter

1 * fitting bracket and screws

1*English Manual
